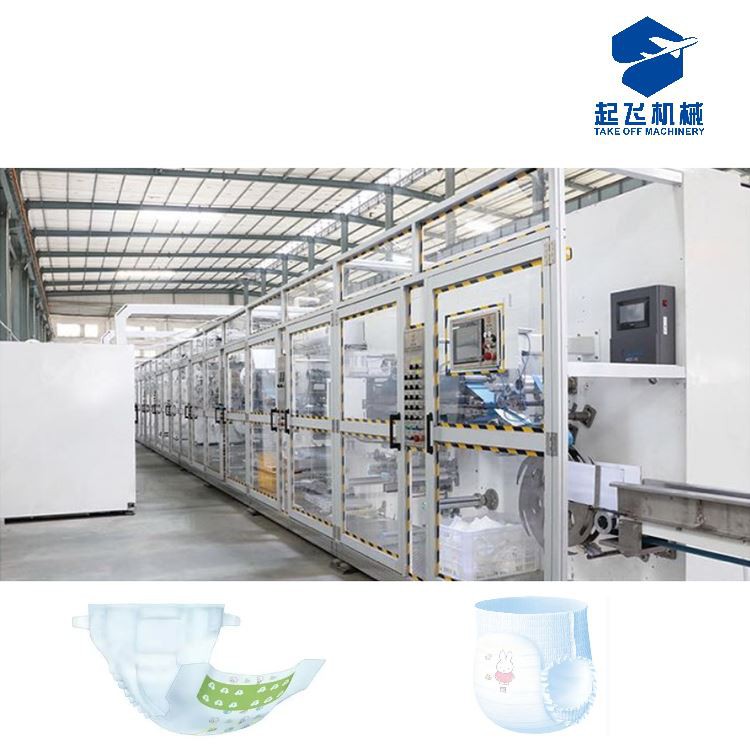

Rub Up Baby Diaper Tshuab

Main parameter

Qhov loj ntawm daim pawm: rau qhov loj me, S, M, L, XL (pem hauv ntej daim kab xev eyemark, Backsheet eyemark yog muaj)

a) Tag nrho ntev ntawm cov ntaub qhwv S: 390mm320mm; Core Length S: 310mm105mm

b) Tag nrho ntev ntawm daim pawm M: 445mm320mm; Core Length M: 365mm105mm

c) Tag nrho ntev ntawm daim pawm L: 485mm320mm; Tub ntxhais ntev L: 395mm105mm

d) Tag nrho ntev ntawm daim pawm XL: 525mm320mm; Core Length XL: 435mm105mm

Lub Zog: 350 KW

Lub cev hnyav: 95T

Kev siv hluav taws xob: 380V 50HZ

Tshuab Loj: 42m7.5m3.5m

Air :{{0}}.6 reduce 0.8Mpa,6000L/min（buyer need prepare the air compressor)

Tshuab xim: mis nyuj dawb

Lub tshuab ua haujlwm sab plating nickle

Basic configuration

Ncej ntu:

Cov ncej yog ua los ntawm square steel. Cov khoom tuab ntawm lub vaj huam sib luag yog 30mm tom qab ua tiav, thiab lub dav hlau yog milling tom qab vuam nrog 60mm60mm khoom square steel rau kho tus ncej.Lub thav duab ntawm lub hauv paus yuav tsum yog 150mm150mm square raj (raws li tus qauv thoob ntiaj teb), thiab cov khoom tuab. ntawm cov phaj hauv qab yuav tsum yog 20mm tom qab ua tiav.Lub thawv xa rov qab tau nthuav dav mus rau 1000mm rau kev saib xyuas, thiab ob qho kev txo cov txheej txheem ua haujlwm tau teeb tsa tom qab lub tshuab. Lub tshuab ua kua nplaum yog nruab nrog ob txheej txo cov txheej txheem ua haujlwm los tso cov kua nplaum tom qab lub tshuab.Aluminium alloy qhov rooj thaiv qhov rooj tiv thaiv qhov rooj yog ntsia rau ntawm kev ua haujlwm sab.

Hauv qab zaj duab xis: yoog lwm cov cuab yeej unwinding, txoj hauj lwm cutter, cov khoom yuav luam cov cim xov

1.Double cua ncej, hloov zaus tswj cov motors unwinding, nro tswj

2.Splicing cov khoom tsis txo qhov ceev thiab nws pib tsis kam lees cov khoom pov tseg splicing

3.Servo tswj nro

4.Lub tshuab yuav nres tsis siv neeg thaum siv cov khoom siv

5.Auto tsis lees paub cov khoom pov tseg splicing

6.Txhim kho lub vev xaib (14)

Composite hauv qab zaj duab xis unwinding (hloov lwm yam khoom siv unwinding):

1.Double cua ncej, hloov zaus tswj cov motors unwinding, nro tswj

2.Splicing cov khoom tsis txo qhov ceev thiab nws pib tsis kam lees cov khoom pov tseg splicing

3.Servo tswj nro

4.Lub tshuab yuav nres tsis siv neeg thaum siv cov khoom siv

5.Auto tsis lees paub cov khoom pov tseg splicing

6.Txhim kho lub vev xaib (15) (16)

7.Leg spandex ntug folding ntaus ntawv

Kov txheej, paj rwb tub ntxhais thiab hauv qab zaj duab xis composite compaction

Cov khoom siv cutter

Cov khoom hloov kho siab heev geneva log tshuab tig 90 degree

Waistband tsis woven unwinding (hloov lwm yam khoom siv unwinding):

1.Double cua ncej, hloov zaus tswj cov motors unwinding, nro tswj

2.Splicing cov khoom tsis txo qhov ceev thiab nws pib tsis kam lees cov khoom pov tseg splicing

4.Lub tshuab yuav nres tsis siv neeg thaum siv cov khoom siv

5.Auto tsis lees paub cov khoom pov tseg splicing

6.Txhim kho lub vev xaib (17)

7.Equip nrog ob zaug nro tswj

Lub xub pwg sab nraud uas tsis yog woven unwinding (hloov cov khoom siv sab nraud unwinding):

1.Double cua ncej, hloov zaus tswj cov motors unwinding, nro tswj

2.Splicing cov khoom tsis txo qhov ceev thiab nws pib tsis kam lees cov khoom pov tseg splicing

4.Lub tshuab yuav nres tsis siv neeg thaum siv cov khoom siv

5.Auto tsis lees paub cov khoom pov tseg splicing

6.Txhim kho lub vev xaib (18)

7.Equip nrog ob zaug nro tswj

Hluav taws xob qhov chaw:

1. Kev kuaj xyuas qhov system:

1) Tsis siv neeg tshawb pom thiab lamination ntawm cov khoom siv raw cov pob qij txha

2) Muaj lub tswb lossis kaw rau cov khoom siv raw khoom tawg

3) Pem hauv ntej daim kab xev hauv online nrhiav pom thiab muab tso rau

4) Kev tshawb nrhiav online thiab muab tso rau ntawm daim duab rov qab

5) Lub photoelectric hloov thav duab rau kev sim yog yooj yim kho

2. Kev tswj kev sib kis:

1) Pib muaj nuj nqi: ib lub pob pib ua ntu zus los txo cov hluav taws xob hluav taws xob cuam tshuam

2) Servo lub cev muaj zog tswj kev ceev yog saws rau cov kab ntau lawm, hloov cov pawm loj ntawm PLC npo.

3) Cov kab ntau lawm tsis tuaj yeem pib kom txog thaum lub kiv cua pib lossis lub tshuab ua kua nplaum npaj tau

3. Unrolling thiab splicing:

1) ruaj khov uncoiling thaum splicing, tsis siv neeg splicing los yog manually tswj khawm splicing

2) Stitching ceev tuaj yeem teem caij sib cais ntawm lub vijtsam ua haujlwm

3) Lub coil txoj kab uas hla thaum lub sij hawm raw khoom splicing tuaj yeem raug kho kom txuag tau cov ntaub ntawv raw

4.Unwinding thiab splicing

1）Unwinding is stable when splicing. Splicing can be automatic or by manual.

2）Splicing speed can be set on screen.

3）Splicing diameter can be precisely adjusted to save the material cost.

5.Operating touchable npo:

1) Kev ua haujlwm npo nruab rau nruab nrab ntawm lub tshuab, nrog Suav thiab Askiv program, Nws tuaj yeem tswj tau los ntawm lub computer.

2) Cov khoom siv tsis txaus, sib koom ua ke, kev sib txuas, Ntxuam, Lub tshuab nqus tsev twj ua haujlwm tuaj yeem pom ntawm qhov screen

3) Cov ntaub ntawv ntawm kev suav txoj haujlwm, kom muaj nuj nqis tuaj yeem hloov kho ntawm qhov screen

6. Kev ruaj ntseg ntaus ntawv:

1) Nruab nrog kev tiv thaiv kev nyab xeeb, lub qhov rooj tiv thaiv yog affixed nrog cov kab lus ceeb toom kev nyab xeeb, thiab lub thickness ntawm lub qhov rooj vaj huam sib luag yog 5 hli.

2) Teem lub khawm nres thaum muaj xwm ceev kom haum rau pem hauv ntej ntawm lub tshuab.

3) Cov kab hluav taws xob nres xwm ceev yuav tsum tau teem rau pem hauv ntej thiab nraub qaum ntawm lub tshuab

4) Nws tau nruab nrog ntau yam khoom siv kom nrawm, nrawm thiab tswb, thiab tsis siv neeg ceev kom ua haujlwm yooj yim

5) Kev ruaj ntseg baffle phaj thiab lwm yam khoom siv tau nruab rau ntawm lub cuab yeej inlet. Kev nyab xeeb baffle phaj yog ntsia ua ntej lub tshuab compression.

6) Lub tshuab tshuaj tsuag tuaj yeem paub qhov hloov pauv tsis siv neeg thaum hloov daim pawm loj. Ib tus lej sib raug rau ib pawg ntawm cov ntaub ntawv sib raug.

7. Cov hlau yog muab los ntawm ib qho kev ywj pheej xaim qhov nyob rau sab ntawm lub thawv xa khoom tom qab, uas tau muab faib ua ob txoj kab, cov kab muaj zog thiab cov kab tsis muaj zog, nrog cov xov hlau zoo.

8. Tsis muaj zog tam sim no: 24V.

9. Txau thiab khawb kev tswj thiab kev sib koom ua ke:

1) Tsim nyog tseg txoj haujlwm ntawm cov kua nplaum, tshuaj tsuag lub kaum sab xis ntawm rab phom nrog 90 degrees, cov yeeb nkab roj hmab nkag mus rau sab saum toj ntawm lub tshuab mus rau hauv lub thawv xa rov qab thiab tom qab ntawd tawm los ntawm lub vaj huam sib luag, cov yeeb nkab roj hmab tuaj yeem kho tau. nyob rau hauv lub thawv kis tau tus mob tsis muaj kev sib txhuam nrog accessories, thiab baffle yog ntsia rau hauv qab ntawm tag nrho cov roj hmab txau txoj hauj lwm.

2) Koom tes nrog lub tshuab ua kua nplaum kom paub tias tsis siv neeg gluing, tsis siv neeg nres thaum lub tshuab nres, thiab kev tswj xyuas

3) Lub teeb tau teeb tsa hauv thaj chaw tshuaj tsuag (kev nyab xeeb voltage: 12V)

4) Glue muab lub cev muaj zog ntawm qhov sib txawv thiab qhov ntau thiab tsawg tuaj yeem kho qhov ceev tau txais.

5) Txhua lub log hloov ua ntej thiab tom qab txau / khawb yog kho nrog ntshav

6) Txhim kho cov khoom siv hluav taws xob tso tawm kom pom cov ntaub ntawv ntawm cov khoom tau txais thiab tawg, sib koom cov nroj tsuag thiab lwm yam
