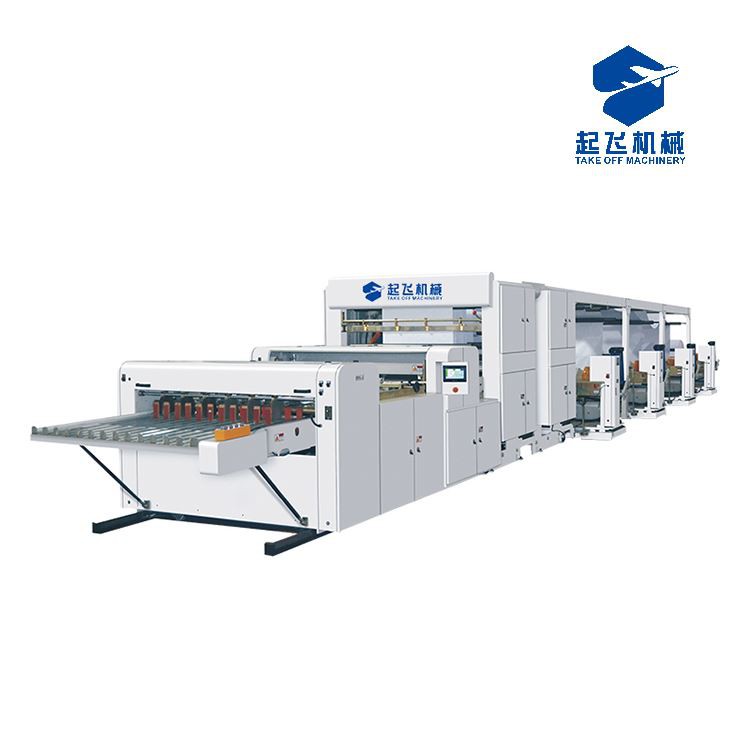

A4 Ua Tshuab

Muaj peev xwm:

1. Ib qho yob unwinding: 1.5 ream / min (900 ream / hnub) (2.25 tuj ntawv / hnub)

2.Double yob unwinding: 3 ream / min (1800 ream / hnub) (4.5 tuj ntawv / hnub)

3.Four yob unwinding: 6 ream / min (3600 ream / hnub) (9 tuj ntawv / hnub)

Technical Parameter

Yam ntxwv:

●Lub tshuab txais servo lub cev muaj zog, zaus tswj ceev.PLC Tswj System, suav nrog kev tswj tsis siv neeg nro, tsis siv neeg suav, teeb tsa qhov loj me, tsis siv neeg nres los ntawm kev teeb tsa lub sijhawm & tus lej thiab lwm yam haujlwm ntau.

● Unwinding jumbo yob ib feem siv lub tshuab cua tsis siv neeg (3/6 nti, xaiv tau) lossis ncej-tsawg (3/6 nti, xaiv tau)

●Unwinding jumbo yob ib feem txais EPC system, tsis siv neeg kho lub vev xaib cov ntaub ntawv thiab ua kom muaj kev txiav siab.

● Lub tshuab txee txais yuav cov hlau casting, guillotine riam siv hnyav casting qauv, traction rollers siv li qub tshuav nyiaj li cas ua aluminium rollers.

● Tsis siv neeg stacking & trimming tiav cov nplooj ntawv, siv ob theem motors los xa cov ntawv mus rau broadside.The convey broadside qauv tshuab tuaj yeem txuas rau lub tshuab ntim tsis siv neeg.

Cantilever unwind, nrog expanding ncej rau 3 "cores

Lub taub hau yuav tsum yog qhov nthuav dav cua-ncej rau tuav lub hauv paus.

Inflating thiab deflating ntawm huab cua ncej nrog ib tug ruaj rotary union cua kev twb kev txuas, ua hauj lwm nrog ib tug laub

khawm lossis siab / tso tawm valve rau kev hloov pauv ceev.

Rau lub tsev nro ntawm lub vev xaib peb xav tau me me hmoov-brake. txhim kho kev ua haujlwm zoo.

Yuav ua li cas cia cov hlau nplaum hmoov clutch kom ruaj khov thiab kev nyab xeeb thaum khiav ceev?

Kev daws: Ib daim ntawv slitting thiab winding mechanism, muaj xws li ib tug nias rau cov menyuam 1, ib tug huab cua expansion ncej 2, ib tug viav caj npab 3, lub tog raj kheej rooj 4, lub tog raj kheej 5, lub winding rooj 6, ib tug tig ncej 7, hydraulic lub tog raj kheej 8, winding motor 9, thiab kab rail 10, positioning zawj 11, phab ntsa phaj 12, slitting riam ncej 13, slitting riam 14, siab bearing roller 15, crank 16, 12 yog tig thiab txuas nrog 1 thiab 13, yog li tias tag nrho Cov qauv yog ruaj khov dua, kev ruaj ntseg thaum lub sijhawm ua haujlwm tau nce, cov khoom tsim tau zoo dua qub, thiab kev ua haujlwm tau zoo dua qub; 15, muaj ob 12, uas yog raws li nyob rau hauv ob sab ntawm lub 1, lub 13, lub 14 thiab lub 15; lub 14 yog ntsia rau ntawm 13, sab hauv qab 12 yog muab nrog 10, thiab muaj 10, uas yog raws li nyob rau hauv lub sab ntawm lub 12.
