Cov khoom

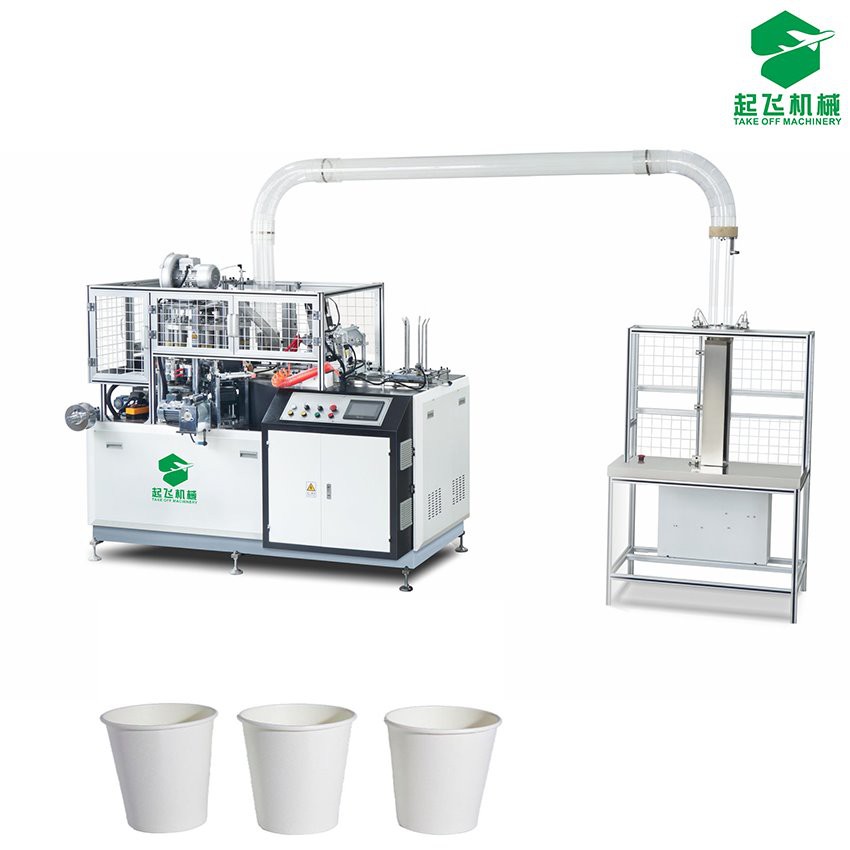

Fully Automatic Paper Cup Tshuab
Parameter
|
Lub npe |
Ntawv khob tshuab |
|
|
Qauv |
TO-S800 thiab |
|
|
Daim Ntawv Loj |
3-16 OZ |
|
|
Raw Khoom |
Ib sab lossis ob sab PE coated ntawv (Singe PE lossis Ob chav PE coated ntawv) |
|
|
Ceev |
75-85 pcs/min |
|
|
Haum daim ntawv hnyav |
100-300g/㎡;±20g/㎡ |
|
|
Voltage muab |
380V (220V) 50HZ |
|
|
khob loj |
hauv qab35-70mm, saum45-90mm, siab32-135mm |
|
|
Ua Haujlwm Cua Qhov Chaw |
{{0}} 4-0.6Mpa; 0.4 m³ / min |
|
|
General hwj chim |
6 kws |
|
|
Net nyhav |
2000 kg |
|
| Kev ntsuas (mm) |
Lub tshuab loj |
L: 2100mm; W: 1200mm; H: 1800mm
|
|
khob collector 100kgs |
L: 900mm; W: 600mm; H: 1500mm |
|
|
Khob Sab Sealing |
EVERGREEN Ultrasonic |
|
|
Hauv qab Knurling |
Cua tshuab cua sov |
|
1.paper khob tshuab tshuab:
Lub khob-rub lub khob-poob ntaus ntawv, suav nrog lub rooj zaum ua haujlwm, lub khob ntim khoom ntim rau ntawm qhov chaw ua haujlwm,
thiab ib qho curling forming unit tau teem rau ntawm ib sab ntawm lub khob xaum tsev. Lub khob ntim khoom suav nrog a
Lub khob-poob rotating ncej ntawm theem, lub khob-tej rotating disc teem rau ntawm lub khob-poob rotating ncej, thiab ib tug ntau ntawm lub khob-poob rotating discs teem rau lub khob-poob rotating ncej
Daim ntawv khob mounts rau ntawm lub tais rau mounting ntawv khob, thiab ib tug suction khob ntaus ntawv muab rau ntawm lub workbench. lub khob nqus dej
Cov cuab yeej muaj xws li nqa lub raj tso rau ntawm lub rooj ua haujlwm, ib lub khob nqus pluaj npaj rau ntawm ib kawg ntawm lub tshuab nqa, thiab
Ib qho suction khob qhov muab rau ntawm lub khob suction khob phaj. Cov kav dej nqa thiab lub khob nqus dej sib txuas ua ke. Daim ntawv hemming
Cov khoom muaj xws li hemming rotation ncej teem rau ntawm lub worktable, thiab hemming rotation ncej teem rau ntawm hemming rotation ncej
disc, ib tug ntau ntawm hemming forming tuag teem rau ntawm lub hemming rotating disc, thiab lub khob tuav teem rau ntawm lub rooj ua hauj lwm
teeb. Txhua lub hemming forming pwm muaj xws li lub cev pwm pov tseg rau ntawm lub hemming rotating disk, thiab lub cev pwm pov tseg rau ntawm hemming rotating disk.
Lub axial accommodating los ntawm lub qhov ntawm lub pwm lub cev, thiab ib tug kawg lub taub hau pov tseg ntawm ib kawg ntawm lub accommodating los ntawm lub qhov uas tig tawm ntawm lub khob yas dhos
tsim grooves. Cov khoom siv lub khob ntim khoom suav nrog lub khob tuav lub tshuab nqa lub cev tau npaj rau ntawm lub rooj ua haujlwm, thiab a
Lub khob tais chav tsev muab rau ntawm lub khob tais nqa lub tsev tsav. Lub khob tuav chav tsev suav nrog a
Ib lub sliding lifting platform, thiab tsawg kawg yog ib lub khob tuav lub phaj teem rau ntawm zawv zawg nqa platform. Thaum lub khob ntawv dov, qhov nqus
Cov khoom siv khob yog nyob rau hauv tib txoj kab raws li lub hauv paus axis ntawm ib qho ntawm cov curling forming pwm thiab ib qho ntawm cov ntawv khob mounting qhov chaw, thiab ib qho
Lub hauv paus axis ntawm ib lub khob tais yog coincident nrog lub hauv paus axis ntawm ib qho ntawm cov hemming forming pwm, thiaj li kom paub qhov poob thiab poob ntawm daim ntawv khob.
FAQ
1) Yog tias muaj qhov xav tau hloov pauv, kuv yuav ua li cas?
Peb muab tag nrho cov khoom seem rau peb lub tshuab luam ntawv. Yog tias ib feem puas lawm, peb yuav kho nws lossis xa cov khoom tshiab rau koj tom qab cov neeg siv xa rov qab cov khoom tawg. Peb xav kom cov neeg siv khoom xaj qee qhov khoom seem pob rau kev saib xyuas lub sijhawm ntev thiab hloov pauv sai.
2) Peb yuav tsum them se ntau npaum li cas?
Thov hu rau koj lub chaw lis kev lis kev cai hauv zos lossis tus neeg sawv cev ntshuam kom paub meej. Ua tsaug.
