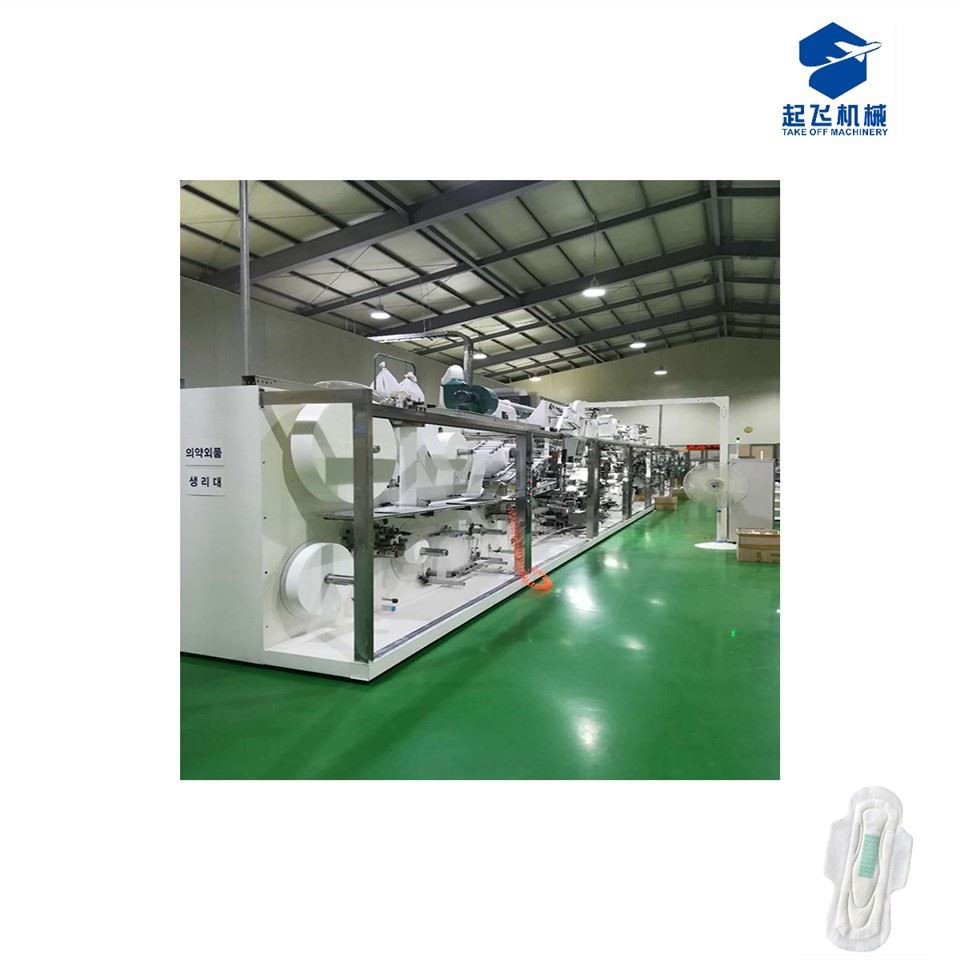

Sanitary Napkin Ua Tshuab

Tshuab muaj peev xwm

Tag nrho servo hom: 400,000 pcs / 10 teev

Semi servo hom: 300,000 pcs / 10 teev

Ntau zaus: 200,000 pcs / 10 teev

Yog tias koj xav paub cov ntsiab lus ntawm cov ntaub so ntswg huv, pls tiv tauj peb los ntawm email lossis whatsapp

Main parameter

1.Supply: 380V, 50HZ 3 theem 4 xaim+ av xaim

2. Cua siab: 0.6-0.8Mpa; 3 m3 / min

3.Product loj: 240mm 280mm 320mm

4.Product qauv:

(1) Pulp hom: nto txheej+ADL+ paj rwb tub ntxhais (cov ntaub so ntswg ntawv+pulp+SAP)+PE zaj duab xis+center tso daim ntawv+ob sab tso daim ntawv+pob zaj duab xis+kub yaj kua nplaum+ daim kab xev

(2) Ultra-thin type: deg txheej+ADL+ paj rwb core(air nteg+SAP ntawv)+PE zaj duab xis+daim ntawv tso tawm nruab nrab{ {7}}ob sab tso daim ntawv+pob zaj duab xis+kub yaj kua nplaum+ daim kab xev

5. Lub zog: 150KW

6.Design ceev: 800 pcs / min, ruaj khov ceev (kuaj ceev): 600 pcs / min

7.Finished tus nqi: ≥97%

8. Tshuab loj (m): 25 * 7 * 2.5 (ntev * dav * qhov siab)

1. Peb muaj 3 qib tshuab, puv servo, semi servo thiab zaus hom kom tau raws li cov neeg xav tau thiab yuav lav qhov zoo ntawm peb qib tshuab.

2. Adapt DANFO zaus tswj cov khoom siv raw unwinding, kom cov khoom siv tau zoo thaum nws ceev ceev (200m / min).

3. Adapt PLC tswj tag nrho lub tshuab, cov neeg ua haujlwm ua haujlwm tuaj yeem ua haujlwm feem ntau ntawm lub vijtsam kov, zoo li qhov nrawm, qhov loj me, tuab, kom muaj nuj nqis ntawm raw khoom thiab lwm yam.

4. Cov cuab yeej xaiv tau suav nrog lub tshuab ntim puv puv, phau ntawv ntim tshuab, iav qhov rooj, kev tshuaj ntsuam xyuas qhov tsis zoo thiab chav kho plua plav, cov no muab cov neeg siv khoom xaiv ntau dua.

5. Feem ntau nruab inching khawm, kev kho kom raug ntau tuaj yeem ua rau cov khoom zoo meej.

6. Txhua yam khoom siv raw khoom nrog ob lub ncej thiab nws pib splicing khawm.lub tshuab yuav tsum tsis txhob nres thaum cov khoom siv raw khoom siv.Raw khoom nruab nrog nruj tswj qhov system thiab lub vev xaib qhia, lav cov khoom mus rau txoj hauv kev, txhim kho qhov zoo ntawm cov khoom. khoom.

7. Lub tshuab tseem ceeb tuaj yeem txuas nrog lub tshuab stacker thiab lub tshuab ntim puv puv tsis siv neeg, dua li tuaj yeem txuag tau 6-8 cov neeg ua haujlwm ntim khoom, txuag nqi, ntxiv rau lub tuam txhab kev sib tw.

8. Nruab khawm ceev hauv qee qhov ntawm lub tshuab, tus neeg siv khoom tuaj yeem xaiv lub qhov rooj ruaj ntseg iav, lav qhov kev nyab xeeb hauv kev tsim khoom.

9. tuaj yeem ntxiv cov khoom siv rov ua dua tshiab

10. Lub tshuab tuaj yeem tsim tau ob hom tshuaj ntxuav tes, hom paj rwb thiab hom ultra-nyias.
