Cov khoom

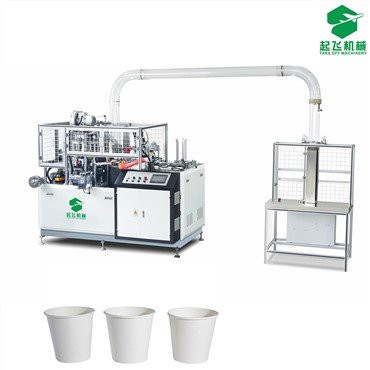

Daim Ntawv Khob Ua Tshuab
Parameter
|
Lub npe |
Ntawv khob tshuab |
|
|
Qauv |
TO-S800 thiab |
|
|
Daim Ntawv Loj |
3-16 OZ |
|
|
Raw Khoom |
Ib sab lossis ob sab PE coated ntawv (Singe PE lossis Ob chav PE coated ntawv) |
|
|
Ceev |
75-85 pcs/min |
|
|
Haum daim ntawv hnyav |
100-300g/㎡;±20g/㎡ |
|
|
Voltage muab |
380V (220V) 50HZ |
|
|
khob loj |
hauv qab35-70mm, saum45-90mm, siab32-135mm |
|
|
Ua Haujlwm Cua Qhov Chaw |
{{0}} 4-0.6Mpa; 0.4 m³ / min |
|
|
General zog |
6 kws |
|
|
Net nyhav |
2000 kg |
|
| Kev ntsuas (mm) |
Lub tshuab loj |
L: 2100mm; W: 1200mm; H: 1800mm
|
|
khob collector 100kgs |
L: 900mm; W: 600mm; H: 1500mm |
|
|
Khob Sab Sealing |
EVERGREEN Ultrasonic |
|
|
Hauv qab Knurling |
Cua tshuab cua sov |
|
paper khob tshuab technology:
Ib lub tshuab nplaum sab nraud, suav nrog
ib daim ntawv nplaum sab nrauv conveying mechanism rau cov ntawv nplaum sab nrauv, thiab cov ntawv nplaum sab nrauv lub tog raj kheej tsim cov txheej txheem nyob rau ntawm qhov kawg ntawm cov ntawv nplaum sab nrauv conveying mechanism, thiab
Ib daim ntawv raj sab hauv lub khob tsim cov txheej txheem nyob rau ntawm qhov kawg ntawm cov ntawv nplaum txheej txheej txheej txheej txheem, thiab cov ntawv nplaum txheej txheej txheej txheej muaj xws li ultrasonic yoj.
Ib lub tshuab tsim thiab ntau lub chaw nres tsheb ntawv raj turret, daim ntawv raj sab hauv lub khob tsim tshuab suav nrog ntau lub chaw nres tsheb ntawv raj sab hauv khob turret, ntau lub chaw nres tsheb sab hauv khob turret
Qhov chaw nres tsheb daim ntawv raj sab hauv lub khob turret muaj xws li ib lub raj xa ntawv chaw nres tsheb, ib lub raj raj gluing chaw nres tsheb, ib lub khob ntim chaw nres tsheb, ib lub raj raj sab hauv lub khob pressing chaw nres tsheb, lub qhov hluav taws xob
Khob chaw nres tsheb, daim ntawv raj sab hauv lub khob tsim mechanism kuj muaj xws li ib tug gluing ntaus ntawv sib raug mus rau daim ntawv raj gluing chaw nres tsheb, thiab ib tug gluing ntaus ntawv sib raug rau cov ntawv raj gluing chaw nres tsheb
Lub khob sab hauv pub khoom siv sib txuas rau lub khob qhov chaw nres tsheb, thiab cov khoom siv gluing muaj xws li ib txoj kab uas hla sab nraud me dua li lub taub sab hauv ntawm lub tog raj kheej.
Lub thawv yas, lub rooj tsav tsheb sib txuas rau kev tsav lub thawv yas tig, thiab lub thawv yas rau kev tsav lub thawv yas nyob ze lossis deb ntawm cov ntawv nplaum sab nraud
Lub lifting tsav los ua ke ntawm lub thoob, thiab cov kua nplaum muab los ua ke rau muab cov kua nplaum rau lub thawv kua nplaum, lub thawv kua nplaum muaj xws li lub thawv kua nplaum rau tuav cov kua nplaum.
Cov kua nplaum tuav kab noj hniav, lub voj voog sab phab ntsa ntawm cov nplaum tuav lub thawv yog muab nrog lub qhov hluav taws xob ua kua nplaum uas txuas nrog cov kua nplaum tuav kab noj hniav, thiab cov rotating tsav sib dhos ua rau cov kua nplaum tuav kab noj hniav.
Thaum lub sij hawm sib hloov ntawm lub thawv, cov kua nplaum hauv cov kua nplaum tuaj yeem ntws tawm ntawm lub qhov hluav taws xob hauv qab qhov kev txiav txim ntawm lub zog centrifugal.
FAQ
1.Q: Lub tshuab puas tuaj yeem ua tauua lub khob ntawv loj sib txawv ?
A: Yog lawm, tsuas yog ntxiv cov qauv ntxiv.
2.Q: Koj puas ua tshuab raws li cov lus qhia tshwj xeeb?
A: Yog lawm, peb tsim cov tshuab sib txawv rau lub hom phiaj tshwj xeeb.
